Coin Cell
True Wireless Stereo (TWS) Testing | Coin Cell Testing | Material Research

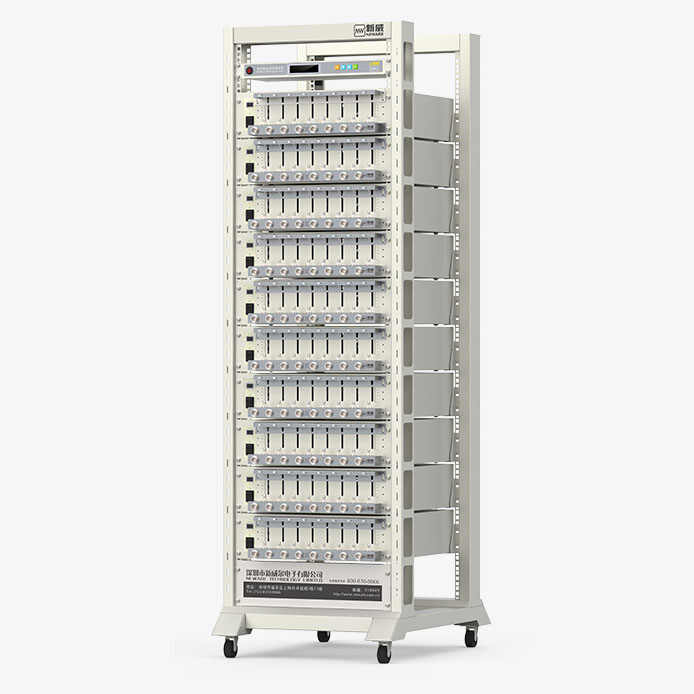

Small Current of 3C Cell TestingCT-4008Tn-5V10mA-164
CT-4000 Multi Range mA Battery Testing System, characterized with 0.05% FS accuracy and down to μA capability, enables users to perform DCIR tests, dQ/dV and other basic tests on three-electrode system. It mainly focuses on battery research & development institutions and universities.
Lab
Various kinds of instruments all in need it.
Small in size. Big on capability.BTS 4000
You can see equipment's unite ID via LCD. What's more, 164 port is used to connect accessories to test coin cells. CT-4008Tn-5V10mA-164 equipment has already became the classic equipment, which is widely used in universities, laboratories and research institutes.
Coin cell battery testing system
Application of parts in font of equipment
No details, no success
①Hanging ear: DIY the equipment with gantry;②Switch: Through the translucent red acrylic material, you can vaguely see the red light;③Digital display: Display equipment number from 1 to 32.;④the jack of aerial insertion:3量程设备配备164航插,4量程设备配备124航插。
Coin cell battery testing system
High efficiency in cooling system.
Small and delicate.
Neware new cooling system is much safer and higher efficiency than before. As we know, air inlet occupies the half of the left and right sides. It is really in excellent industrial design. Use it, it can give you a suprise.
Coin cell battery testing system
Plug the cable into the network interface and switch on the power
Turn back and start to test
On the back, you can see the RS-485 interface and AC power supply, which connect the middle computer and BTS server via the cable.
Coin cell battery testing system
0.05%FS Accuracy, μA Current Unit
3 Range, Stable Performance
Coin cell battery testing system
Coin cell battery testing system
  • Coin cell battery testing system Coin cell battery testing system
    10Hz/ 100Hz
    Data Acquisition Frequency
  • Coin cell battery testing system Coin cell battery testing system
    500ms
    Min. Pulse Width
  • Coin cell battery testing system Coin cell battery testing system
    Three-Electrode System
    Test
  • Coin cell battery testing system Coin cell battery testing system
    Charge & Discharge
    Rate
  • Coin cell battery testing system Coin cell battery testing system
    μA
    Current Unit
  • Coin cell battery testing system Coin cell battery testing system
    dQ/dV
    Curve
  • Coin cell battery testing system Coin cell battery testing system
    DCIR
  • Coin cell battery testing system Coin cell battery testing system
    0.05%FS Accuracy
  • Coin cell battery testing system Coin cell battery testing system
    3 Range
  • Coin cell battery testing system Coin cell battery testing system
    ≤500μs/1ms
    Response Time
Coin cell battery testing system
10Hz/ 100Hz Data Acquisition Frequency
Sampling 10 or 100 data per second in a high speed, recording each voltage and current change accurately.
Coin cell battery testing system Coin cell battery testing system
Pulse Width: 500ms
Coin cell battery testing system
Talk about the concept of the three-Electrode System.
In the field of electrochemical research and battery testing, researchers (students) pay more attention to the potential difference between the working electrode (or auxiliary electrode) and the reference electrode while paying attention to the pressure difference between the working electrode and the auxiliary electrode. The auxiliary channel binding method is adopted to isolate from the main channel without interference, and the data is transmitted synchronously (sampling interval), so as to ensure the accuracy and consistency in the battery tests.
Coin cell battery testing system
Via different current discharging, we can get the rate performance.
Coin cell battery testing system
Testing with the μA current unit is more accurate and more convenient.
The design of the μA current unit plays a vital role in the field of current accurate measurement, which is more convenient and more accurate. Generally, magnetoelectric galvanometer can achieve μA level, electromagnetic galvanometer can achieve mA level. Sensitive galvanometer is used for students to check weak current or tiny voltage in DC circuit in the lab. It is a kind of high sensitive magnetoelectric instrument, which can measure the tiny current.
Coin cell battery testing system Coin cell battery testing system Coin cell battery testing system Coin cell battery testing system
Big news! The latest version of Neware BTSDA is realeased with dQdV function.
The voltage of a Li-ion cell is the difference between the positive electrode and the negative electrode potentials as measured versus lithium metal, as shown in the Figure. During charge discharge cycling the positive and negative electrode curves slip relative to one another. Differential voltage (dV/dQ) and differential capacity (dQ/dV) analysis can be used to measure the alignment of electrodes within a full Li-ion cell without the use of the a 3-electrode cell. This allows cell degradation mechanisms to be understood.
Coin cell battery testing system
DCIR=▲V/▲I=|V1-V2|/(I2-I1)
Internal resistance, one of the key characteristics of lithium battery, is an important factor affecting the power performance and discharge efficiency of lithium battery. It is also an important specs to measure the power performance and evaluate the life of lithium battery. Test method: Impose a short-time current pulse to the battery and testing the difference between terminal voltage and open circuit voltage. Dividing the difference by the testing current is considered to be the battery DC internal resistance.The software design supports different test methods and different data value taking methods, own strong compatibility, and can be set and calculated according to requirements.
Coin cell battery testing system
come true 0.05% accuracy
Ultra-lightweight appearance, pro-inspired features, dQ/dV curve,multi-range,0.01% accuracy, and three-electrode system test.
Coin cell battery testing system Coin cell battery testing system
To meet the various requirements adopted in advanced battery research, our equipments can automatically switch the current range in accordance with user settings to maintain consistent accuracy, and can be fitted with additional hardware to provide a number of optional features and capabilities.
Coin cell battery testing system
Generally, the reaction time is divided into two parts: rise time (rise time ≤ 500 μ s) and fall time (fall time ≤ 500 μ s), and the sum of the two parts shall prevail.
University Program
Joint laboratories help continuously upgrade testing standards.
The Neware University Program is the intersection between Neware technology and the battery technology innovators. Ours advanced battery testing systems witness every step forward of the battery technology.
Coin cell battery testing system
Coin cell battery testing system
Coin cell battery testing system
Coin cell battery testing system
Integrated operation and collaborative work through BTS upper computer control system
NEWARE battery charge and discharge test system realizes integrated operation and collaborative work through BTS upper computer control system, so as to maximize the battery characteristics and functions.
Coin cell battery testing system Coin cell battery testing system Coin cell battery testing system
Coin cell battery testing system Coin cell battery testing system Coin cell battery testing system
Software
Essential components
Coin cell battery testing system
Coin cell battery testing system
Coin cell battery testing system
Coin cell battery testing system
Coin cell battery testing system
dQ/dV
Conditions Switches
Segment-Record Conditions
Control peripheral equipment by communication
Super-capacitor testing
dQ/dV differential capacity curve: the peak on the curve indicates that there is a voltage plateau on the charge and discharge curve, and different peaks represent different electrochemical reactions.
Battery testing steps need to be estimated for several conditions according to different operations during testing applications; Conditions switches meet requirements for multi-exits programming types. “And” "or” logic operation, “≥”, ”≤”, ”=” comparatively calculate; Time duration ”t”, can achieve control requirements for special testing. Every step supports 5 condition switches; Support multi-exits, go to any steps, achieve more flexible process control.
Data record settings for voltage, current and time are supported; 3 segment-record conditions can be set for each step; Every segment can be set: ΔT, ΔV and ΔI .
BTS Server come true the peripheral equipment (Battery tester & Automation) communication control via switch.
The unit of Q is Coulomb, 1 Coulomb = 1A * 1s = 1As; 1Ah = 3600 As(Amp Second); Work voltage U = Charge upper limited voltage - Discharge bottom limited voltage; Working voltage can be set and the EDLC coulomb could be calculated automatically by the software.
Size and Weight
Net weight of middle machine:2.5kg
Net weight of single equipment: About 5kg
